PVC plastic conical double screw extruder price

FOB Reference Price:Get Latest Price
$1,800.00 - $5,600.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
conical double screw extruder
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
pvc profile, sheet, panel, pipe, bar,granule
Plastic Processed:
PVC
Screw Design:
Double-screw
Automatic Grade:
Automatic
Place of Origin:
Jiangsu, China
Brand Name:
Jurun
Voltage:
380V 50HZ
Dimension(L*W*H):
3360*1290*2127MM
Weight:
1--3T
Certification:
CE ISO9001
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Warranty:
1 Year, 15 Months
Name:
PVC plastic conical double screw extruder price
Processing Type:
Extruding Equipment
Raw material:
PVC Powder
Material:
Steel Structure
Motor:
SIEMENS Brand
Inverter:
ABB Brand
Capacity:
50-500kg/hr
Color:
Customizable
Power(W):
20---120KW
Supply Ability
Supply Ability:
6 Set/Sets per Month PVC plastic conical double screw extruder price
Packaging & Delivery
Packaging Details
plastic film wrapped and wooden case
PVC plastic conical double screw extruder price
Port
Shanghai port
Product Description

Product Application

PVC plastic conical double screw extruder price

SJSZ series conical double screw plastic extruders are special equipments which can extrud and mold by using various kinds PVC powders. Equipped with different kinds of molds and auxiliary machines, it can produce various PVC pipes, profiles, sheets, plates, bars and granules.

Main Features

1) The screw adopts circulating oil cooling device,so that the friction temperature would be quite allowable.
2) The screw barrel adopts special designed wind cooling system, which makes repair quite easy.
3)Up different material mixing,reasonable structure of screws can be equipped with making desirable plastic and other flowing substance.
4) Main driving motor ,reduction box and screw are assembled i n a line,which ensures easy repair.
5) Equip with forced feeding device,the extruder ensures consistent speed of material discharging.

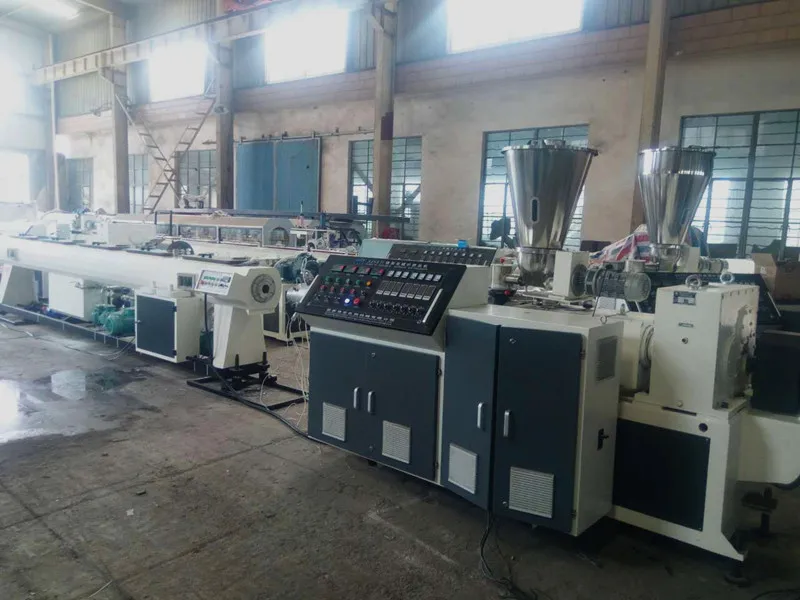

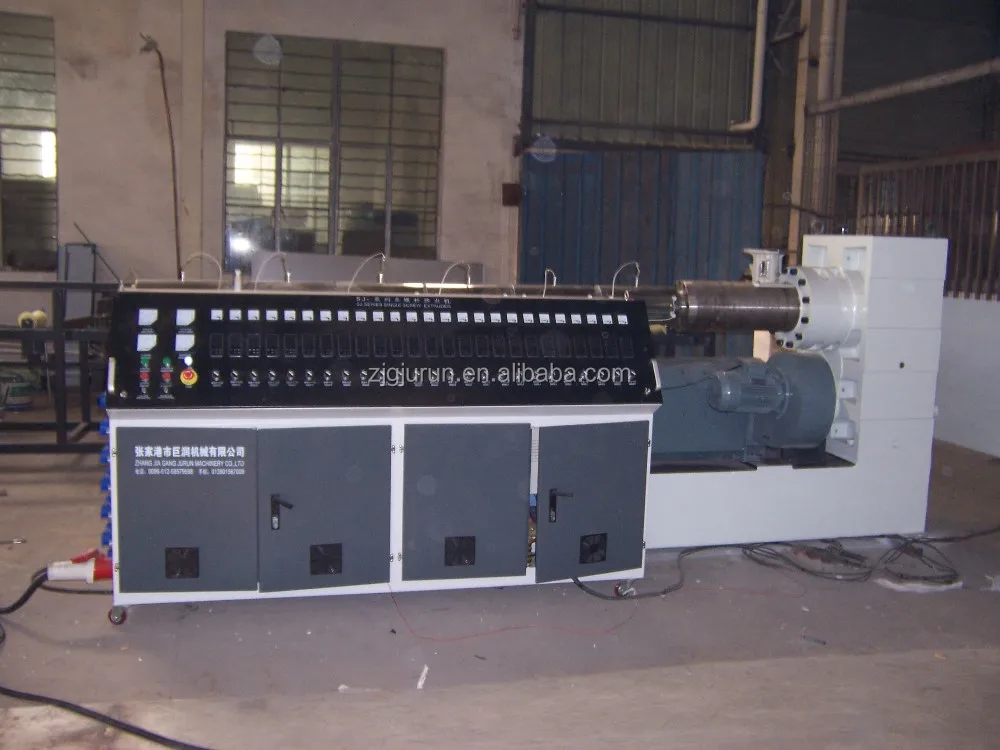

Detailed Images
Item
SJSZ-45
SJSZ-51
SJSZ-55
SJSZ-65
SJSZ-80
SJSZ-92
Diameter of screw(mm)
45/90
51/105
55/113
65/132
80/156
92/188
Number of screw(mm)
2
2
2
2
2
2
Direction of screws
anti-clockwiseoutward
Screw rotation speed(rpm)
1-45
1-45
40
1-35
1-37
1-33
Effective length of screw(mm)
985
1070
1200
1440
1800
2500
Extruder motor power(kw)
15
18.5
22/30
37
55
90
Barrel heating power(kw)
12
18
18
24
36
86.8
Production capacity(kg/h)
120
80-150
150-180
250-300
320-400
600-800
Center height(mm)
1000
1000
1000
1000
1000
1200
Net weight(kg)
2800
3200
3500
4000
5000
8000
Our Service

1. we will provide all the machines for the complete production according to customer's requirements.

2. we will provide complete service for factory layout and other information to help customer to build the factory.

3. we can also provide the raw material to the customer if you need.

4. we provide a full range of technical documents,including the structure,electrical diagram,operating instructions,etc.

5. When after the expiry of the warranty, we still provide extensive and favorable technical support and spare parts.

6. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.

Packing & Delivery
Packaging
Size
According to the equipment size
Weight
12 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
