SJSZ-80 conical twin-screw plastic extruding machine

FOB Reference Price:Get Latest Price
$10,000.00 - $35,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SJSZ-92
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 22 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Profile
Plastic Processed:
PVC
Screw Design:
Double-screw
Automatic Grade:
Automatic
Place of Origin:
Jiangsu, China
Brand Name:
JURUN
Voltage:
380V 50HZ 3Phase
Dimension(L*W*H):
3300*1200*2100mm
Weight:
2T
Certification:
CE ISO9001
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Warranty:
1 Year, 12months
PLC:
Emerson
Inverter:
ABB
Temperature control:
Ormon
Processing Type:
SJSZ-80 conical twin-screw plastic extruding machine
Contactor:
Siemens
Motor:
Siemens
Max output:
600-800kg/h
Material:
Stainless steel
Color:
Black
Power(W):
90KW
Supply Ability
Supply Ability:
1 Set/Sets per Month SJSZ-80 conical twin-screw plastic extruding machine
Packaging & Delivery
Packaging Details
SJSZ-80 conical twin-screw plastic extruding machine
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 22 To be negotiated
Video Description
Product Description

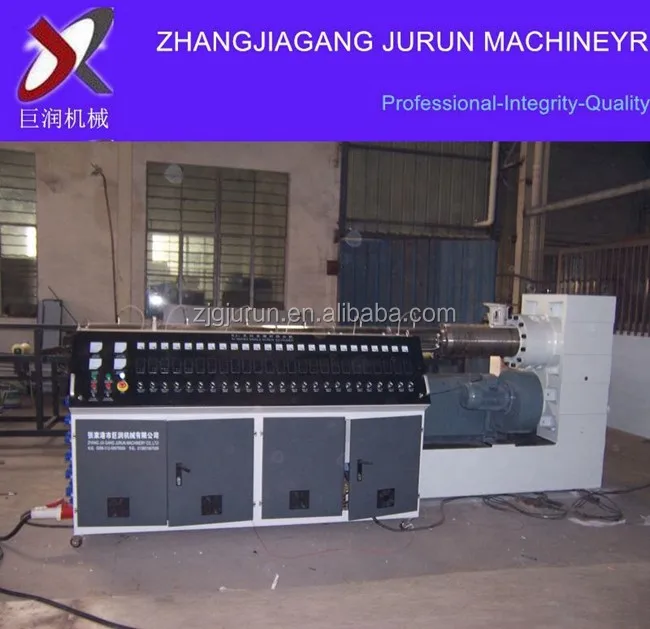

SJSZ-80 conical twin-screw plastic extruding machine


Product Application

The series extruders with appropriate mould and auxiliary machine can directly convert thermoplastic especial PVC pewder into pipe,plate sheet,film and profile,and also provide function of modifying and pelleting.The extruders are derived by A.C motor with a thruster to steepless regulate.It is also equipped with the over-load protection and stoppage alarming system. The screw's core and the outside of barrel is cooled by circulation of oil,it includes vacuum wenting and forced feeding.

Main Features

SJSZ series conical twin screw plastic extruder has the feature of well-proportioned plasticizing and mixing, low shearing velocity, high productivity, stable quality, wide adjustment, long using life, advanced designing, easily operation and extruding of PVC powder directly.

Technical parameter
Item
SJSZ-45
SJSZ-51
SJSZ-55
SJSZ-65
SJSZ-80
SJSZ-92
Diameter of screw(mm)
45/90
51/105
55/113
65/132
80/156
92/188
Number of screw(mm)
2
2
2
2
2
2
Direction of screws
Screw rotation direction
Screw rotation speed(rpm)
1-45
1-45
40
1-35
1-37
1-33
Effective length of screw(mm)
985
1070
1200
1440
1800
2500
Extruder motor power(kw)
15
18.5
22/30
37
55
90
Barrel heating power(kw)
12
18
18
24
36
86.8
Production capacity(kg/h)
120
80-150
150-180
250-300
320-400
600-800
Center height(mm)
1000
1000
1000
1000
1000
1200
Net weight(kg)
2800
3200
3500
4000
5000
8000
Our Service

1. we will provide all the machines for the complete production according to customer's requirements.

2. we will provide complete service for factory layout and other information to help customer to build the factory.

3. we can also provide the raw material to the customer if you need.

4. we provide a full range of technical documents,including the structure,electrical diagram,operating instructions,etc.

5. When after the expiry of the warranty, we still provide extensive and favorable technical support and spare parts.

6. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.

Packing & Delivery
Packaging
Size
According to the equipment size
Weight
4T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
