JURUN machine price of plastic extrusion machinery

FOB Reference Price:Get Latest Price
$5,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SJSZ
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Profile, pvc pipe/granules/profile
Plastic Processed:
WPC
Screw Design:
Double-screw
Automatic Grade:
Automatic
Place of Origin:
Jiangsu, China
Brand Name:
JURUN
Voltage:
380V 50HZ
Dimension(L*W*H):
6m*1.6m*2.5m
Weight:
10T
Certification:
CE ISO
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Warranty:
1 Year
inverter:
ABB
Max capacity:
250kg/h
Type:
SJSZ65
heating power:
24KW
Motor power:
37KW
screw:
conical twin screw
contactor:
Schneider
Color:
Customizable
Name:
JURUN machine price of plastic extrusion machinery
Power(W):
37kw
Supply Ability
Supply Ability:
5 Set/Sets per Month JURUN machine price of plastic extrusion machinery
Packaging & Delivery
Packaging Details
JURUN machine price of plastic extrusion machinery
Packing in film or wooden case
Port
shanghai
Product Description

Features Specifications:


JURUN machine price of plastic extrusion machinery

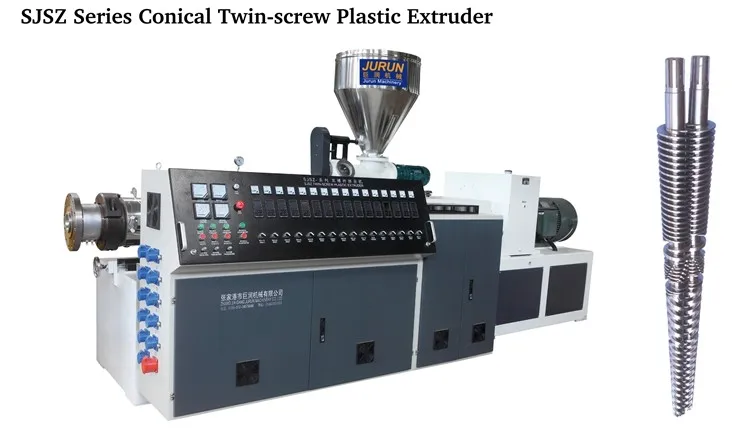

1. Model sjsz double screw extruder is a kind of special equipment for extruding WPC/ PVC compound . With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, and granulation.

2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.

3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.

4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.

5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.

6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.

Model
SJSZ45
SJSZ51
SJSZ55
SJSZ65
SJSZ80
SJSZ92
Scrw diameter (mm)
45/90
51/105
55/113
65/132
80/156
92/188
Screw rotate direction
Turning outwards with different direction
Screw rotation speed (r/min)
1-45
1-45
1-40
1-35
1-37
1-33
Length of screw (mm)
985
1070
1200
1440
1800
2500
Mian motor power (kw)
15
18.5
22
37
55
90
Barrel heating power (kw)
12
18
18
24
36
86.5
Production capacity (kg/h)
95
120
150
250
400
600
Our Service

1. we will provide all the machines for the complete production according to customer's requirements.

2. we will provide complete service for factory layout and other information to help customer to build the factory.

3. we can also provide the raw material to the customer if you need.

4. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.

5. Except one year quality guarantee, we will provide after-sell service for all the life.

6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together.

FAQ

1. Q: If I need the machine urgently, what will you do?

A: We have some machines in our warehouse, if the machine match your demands, we can ship the machine to you within 7days after testing.

2. Q: If my machine can not work when I receive it, what will your factory do?

A: First of all, do not worry about the thing, we will test the machine before shipment. And if it happened, we will send our engineer to your factory to repair the machine.

3. Q: If my machine is broken within one year, what your factory will do?

A: Just send us some pictures and our engineer will analysis the reason, and send you broken parts for free.

4. Q: How can I believe your factory and machines.

A: We have CE, ISO certificates. And we have customers all around the world, we can test the machine after it finished and you check, if it can not reach your demands, we will change, or even give back your deposit.
