Plastic PP-R cold hot water pipe making line

FOB Reference Price:Get Latest Price
$20,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SJ-65
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 32 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Pipe
Plastic Processed:
PE
Screw Design:
Single-screw
Automatic Grade:
Automatic
Place of Origin:
Jiangsu, China
Brand Name:
JURUN
Voltage:
380V 50Hz
Dimension(L*W*H):
40m*4m*5m
Weight:
10T
Certification:
CE ISO
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Warranty:
1 Year, 12months
Raw material:
PPR Granules
Name:
Plastic PP-R cold hot water pipe making line
pipe diameter:
20-63
Output:
200kg/h
Extruder:
SJ65/33
Color:
can be decide by client
Processing Type:
Extruding Equipment
Use:
PP-R PIPE MAKING MACHINE
Motor:
SIEMENS Brand
Power(W):
55kw
Supply Ability
Supply Ability:
1 Set/Sets per Month Plastic PP-R cold hot water pipe making line
Packaging & Delivery
Packaging Details
Plastic PP-R cold hot water pipe making line
STANDARD EXPORT PACKING
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 32 To be negotiated
Video Description
Product Description

Product Application

Plastic PP-R cold hot water pipe making line

1. PP-R (polypropylene random) call also called three type polypropylene pipe and random copolymerization polypropylene pipe or PPR pipe
2. Energy saving material saving, environmental protection, light weight, high strength, corrosion resistance, smooth inner wall not scale, simple construction and maintenance, long service life, etc
3. Widely used in building water supply and drainage, urban drinking water, urban and rural water supply and drainage, city gas, hot and cold water, electricity and cable sheath, industrial liquid transportation, such as agricultural irrigation construction, municipal, industrial and agricultural areas.

Process flow

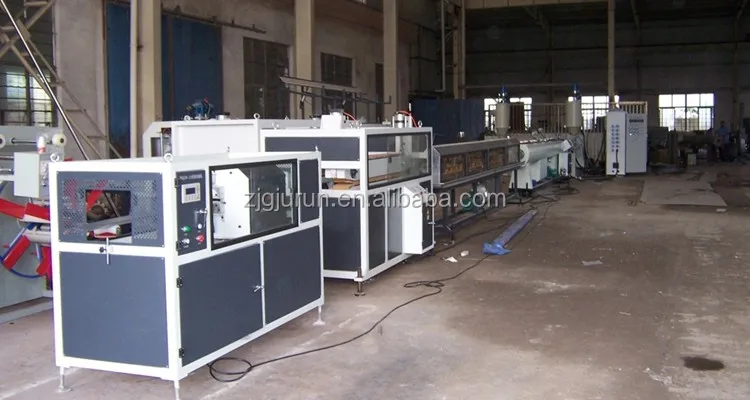

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → discharging rack


Model number
PE/PPR
16/63
PE/PPR
20/110
Extruder model
SJ-65/30
SJ-65/33
output
150kg/h
250kg/h
Installed power
85kw
110kw
Detailed Images

Machine Parts

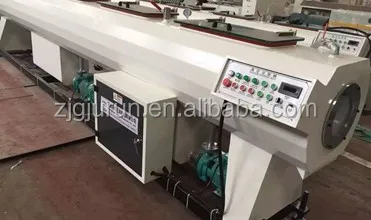

Name: single screw extruder

Brand: JURUN

single screw extruder:The machine has advanced straight league overall design, with effective screw (BM) and barrel unique spiral cooling jacket, in order to realize high speed extrusion low melting temperature.


Main Features

Name: vacuum forming machine
Brand: JURUN

vacuum forming machine:Strong spray cooling, stainless steel box body,Famous brand vacuum pump and water pump

Machine Parts

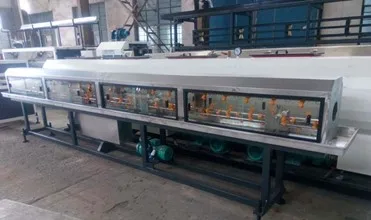

Name: cooling tank
Brand: JURUN

cooling tank :trong spray cooling, stainless steel box body

Machine parts

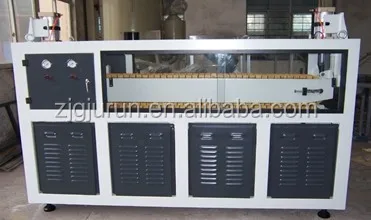

Name: haul off machine

Brand: JURUN

haul off machine:The crawler tractor, the use of pneumatic pressure,(2caterpillar,3caterpillar,4caterpillar,6caterpillar,8caterpillar)

Machine parts

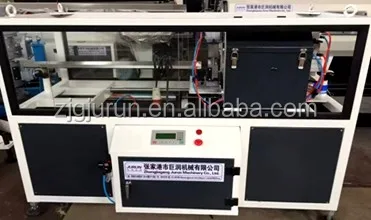

Name: cutting machine
Brand: JURUN
cutting machine :Pneumatic clamping, mechanical feed, rotary cutting

Our Service

1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together.

Packing & Delivery
Packaging
container
1set
Weight
12T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Certifications
FAQ

Title goes here.

1. Q: If I need the machine urgently, what will you do?
A: We have some machines in our warehouse, if the machine match your demands, we can ship the machine to you within 7days after testing.

2. Q: If my machine can not work when I receive it, what will your factory do?
A: First of all, do not worry about the thing, we will test the machine before shipment. And if it happened, we will send our engineer to your factory to repair the machine.

3. Q: If my machine is broken within one year, what your factory will do?
A: Just send us some pictures and our engineer will analysis the reason, and send you broken parts for free.

4. Q: How can I believe your factory and machines.
A: We have CE, ISO certificates. And we have customers all around the world, we can test the machine after it finished and you check, if it can not reach your demands, we will change, or even give back your deposit.
